IS9050-70 Finger Guard

Trapping fingers in hinged doors can cause
horrendous injuries, especially in locations
where children are present. The range of Kilargo
finger guard seals can provide the deterrent.

Trapping fingers in hinged doors can cause very serious injuries,
particularly in locations where young children are present.

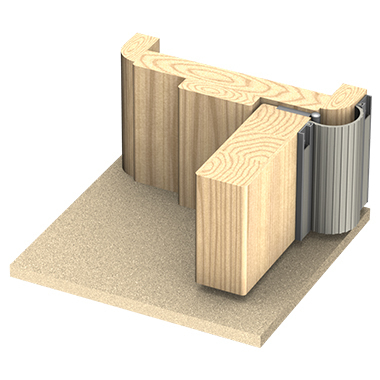

The Kilargo finger guard seals provide a deterrent. These seals can
assist in providing protection on both sides of the door by using the

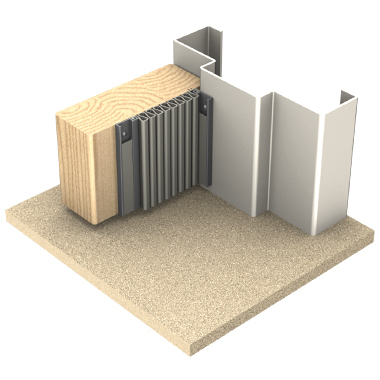

IS9050 or IS9055 on the hinge knuckle side and the IS9070 on the
hinge cavity side (opening / push side) of the door.

Note: These finger guard seals can assist in reducing the risk of
finger pinch injuries on the hinge side of the door, by covering this
void with a flexible rubber gasket. Kilargo does not recommend the
installation of IS9070 on aluminium door frame systems.

Standard lengths
• 2250mm
• Also available in: 250mm increments from 1000mm to 3000mm

Standard colours
• Silver anodised aluminium with grey PVC cover strip and
black gasket
• Black anodised aluminium with black PVC cover strip and
black gasket
• Brown, grey and cream colour gaskets available to special order
• IS9055 is only available in black & grey

*Note: The IS9070 seal when fitted to hinged doors, has a maximum
opening limitation of 110 degrees. Kilargo does not recommend the
installation of IS9070 on aluminium door frame systems.
