IS8011si Automatic Door Seal

Automatic door bottom seals incorporate a spring-
loaded mechanism that automatically lowers to seal the gap as the door closes and retracts as it is opened. They are available in either face-fixed,
semi-rebated or fully mortised options.

A medium duty, automatic door bottom seal which can be face-fixed
or semi-rebated to the bottom edge of single action doors. It operates
automatically by a spring loaded mechanism which lifts the seal clear
of the floor as soon as the door is opened.

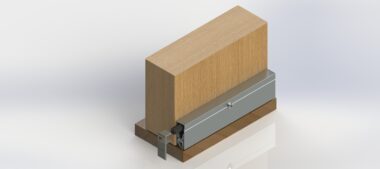

The seal is fixed to the face of the door bottom using the ferrules

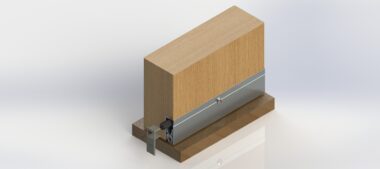

and mounting screws provided. When the seal is to be semi-rebated,

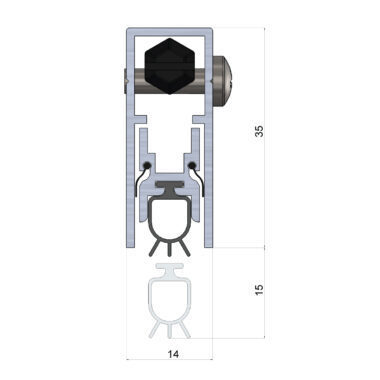

the seal is mounted into a 35mm deep x 14mm wide machined
groove in the side of the door where the seal is to be positioned.
The seal operates automatically by pressure against the door jamb
on its adjustable strike button. The seal contains a high efficiency
mechanism to assist with the closing force requirements detailed
in AS1428/1 (Design for Access and Mobility).

Aesthetic, reinforced nylon push-fit end plates ensure longevity of
the seal mechanism.

Gap size
• Min. 3mm / max. 15mm

Standard lengths
• 380mm
• 600mm
• 820mm
• 920mm
• 1070mm
• 1220mm
(*Longer lengths available to special order)

IS8011si maximum allowable cut-back sizes:
• 380mm seal cuts to 275mm
• 600mm seal cuts to 380mm
• 820mm seal cuts to 600mm
• 920mm seal cuts to 820mm
• 1070mm seal cuts to 920mm
• 1220mm seal cuts to 1070mm
(*Seals can be cut on site for exact dimension)

Standard colours
• Silver anodised aluminium with grey end plates and grey
silicone gasket. (Black end plates and black silicone gasket
also available upon request.)

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7,
compliant with AS6905 on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
• Durability tests demonstrating over 1,000,000 open & close cycles
