IS7340si-55si Astragal Seal

A comprehensive range of perimeter seals designed
to fit around the head, jambs and meeting stiles of
doors, providing an effective barrier to noise, smoke,
weather and draughts.

These translucent polycarbonate astragal seals suit 10mm and
12mm thick frameless glass doors, incorporating high temperature
semi-transparent silicone gaskets. With an easy self-adhesive
application, the seals are available with a silicone flexible bubble
compression seal, or a silicone flexible twin-fin wiping seal, to suit
various glass door applications.

All seals are designed to suit 10mm and 12mm frameless glass
doors, providing ambient and medium temperature smoke
containment, along with draught and dust protection. The high
performance silicone gaskets also protect glass doors from
colliding during closure.

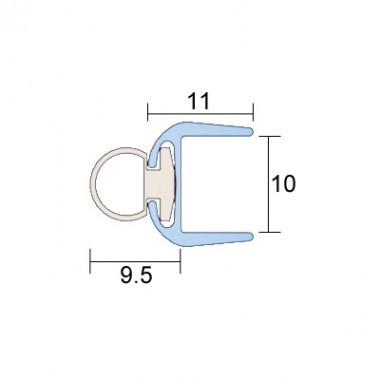

IS7340si and IS7345si suit 10mm glass

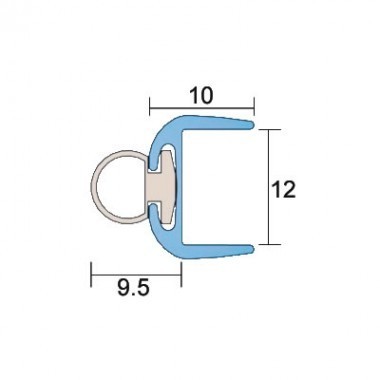

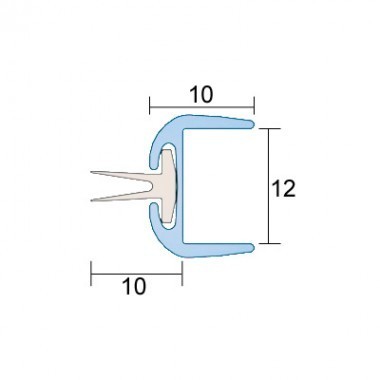

IS7350si and IS7355si suit 12mm glass

Gap size
• Min. 7mm / max. 9mm (prior to installation)

Standard lengths
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Translucent UV stabilised polycarbonate with semi-transparent
silicone bubble or twin-finned gasket

Approval/s
• Conforms with BCA Specification C3.4 smoke sealing requirements
