IS7190si Perimeter Seal

A comprehensive range of perimeter seals designed
to fit around the head, jambs and meeting stiles of
doors, providing an effective barrier to noise, smoke,
weather and draughts.

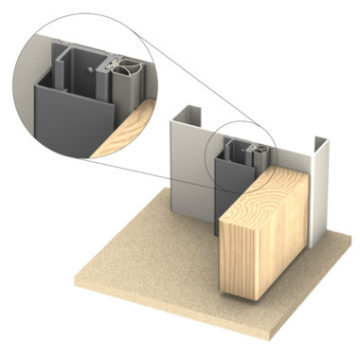

The IS7190si perimeter seal is designed for high performance
acoustic applications. This seal can be fitted to the head and jambs
of door frame perimeters in lieu of door stops, where frames are non
fire-rated. An anodised aluminium tamper-proof cover ‘plate’ simply
clips and locks onto the main carrier to conceal fixings.

The IS7190si has been successfully tested on proprietary fire door
assemblies (mounted on a 25mm frame stop).

Gap size
• Min. 0mm / max. 12mm

Door set standard lengths
• Single: 1 x 1000mm, 2 x 2100mm
• Long Single: 1 x 1000mm, 2 x 2750mm
• Double: 3 x 2100mm
• Long Double: 1 x 2100mm, 2 x 2750mm

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium with grey silicone gasket
(Black silicone gasket also available upon request)

Fixing
• When fixing the IS7190si seal to rebated frames of single doors,
specify a long back set door latch
* Kilargo does not recommend the installation of profiles
with ‘snap-on’ aluminium cover plates for aluminium door
frame systems.

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
• Durability tests demonstrating over 100,000 open & close cycles
