IS7110si Perimeter Seal

A comprehensive range of perimeter seals designed
to fit around the head, jambs and meeting stiles of
doors, providing an effective barrier to noise, smoke,
weather and draughts.

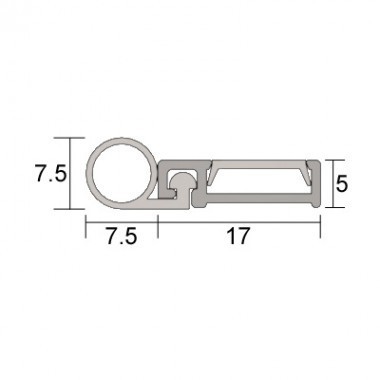

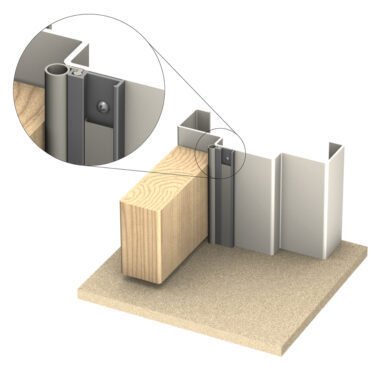

The IS7110si is a compression type perimeter seal, designed to be
fitted to an existing door stop, around the head and jambs of single
swing doors.

Gap size
• Min. 0mm / max. 7mm

Door set standard lengths
• Single: 1 x 1000mm, 2 x 2100mm
• Long Single: 1 x 1000mm, 2 x 2750mm
• Double: 3 x 2100mm
• Long Double: 1 x 2100mm, 2 x 2750mm

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium with grey silicone gasket
and grey cover strip
• Black anodised aluminium with black silicone gasket
and black cover strip

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
