IS7071si Meeting Stile

A comprehensive range of perimeter seals designed
to fit around the head, jambs and meeting stiles of
doors, providing an effective barrier to noise, smoke,
weather and draughts.

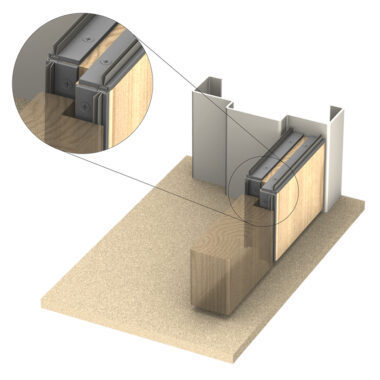

A perimeter and meeting stile seal designed to be fitted to door
perimeters and to plain or rebated meeting stiles of single swing

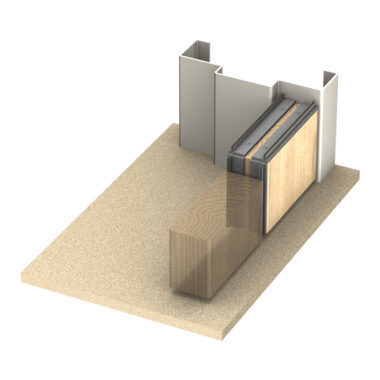

and double swing, double doors. Two IS7071si seals can be installed
onto one stile, allowing a space for a latch between the seals if
required. These seals can be surface mounted or rebated.
It provides an excellent acoustic, smoke, light, dust and weather
seal. IS7071si can be utilised as a perimeter seal around the head
and jambs of single and double doors.

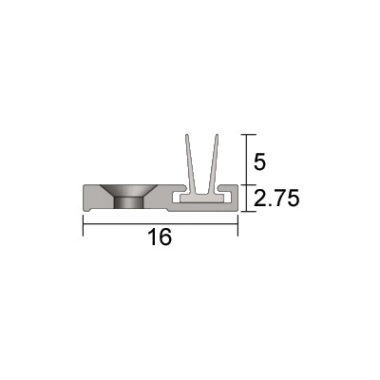

Gap size
• Surface-mounted: min. 5mm / max. 7mm
• Rebated application: min. 2mm / max. 4mm

Standard lengths
• 2250mm
• 3000mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium with grey silicone twin-fin gasket
• Black anodised aluminium with black silicone twin-fin gasket

Fixing
• Fixing screws are supplied
• Fixing holes are pre-drilled and countersunk
• A door sequence selector should be considered unless one leaf
is intended to be fixed

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
(Perimeter Seal)
• Medium temperature smoke leakage approvals to AS1530 Part 7,
compliant with AS6905 on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
• Durability tests demonstrating over 1,000,000 open & close cycles
