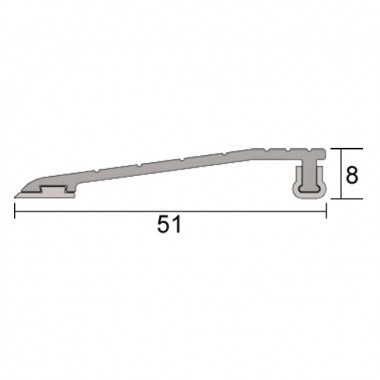

IS4080 Threshold Ramp

Threshold plates are fitted to the sill under doors providing
an optimum sealing surface for door bottom seals.
Available in aluminium (and stainless steel options), threshold
plates offer an elevated sealing plane, providing solutions
to excessive resistance often encountered with carpeted,
uneven or sloping floors. Widths from 25mm to 150mm.

The IS4080 threshold ramp is designed for use in buildings as a
door sill, providing a neat detail between internal carpet or tiles at
doorways. This seal is supplied with PVC bedding pads to assist in
eliminating vibration and noise.

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium

Fixing
• Stainless steel fixing screws and plugs supplied

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
